Guide for SAML/SSO Integration

This guide will help you quickly connect your domain to LottieFiles using Single Sign-On (SSO), providing a seamless and secure login experience for your team.

Pre-requisites

• You must be on an Enterprise plan to get access to Single Sign-On (SSO) / SAML feature.

Step-by-Step Instructions

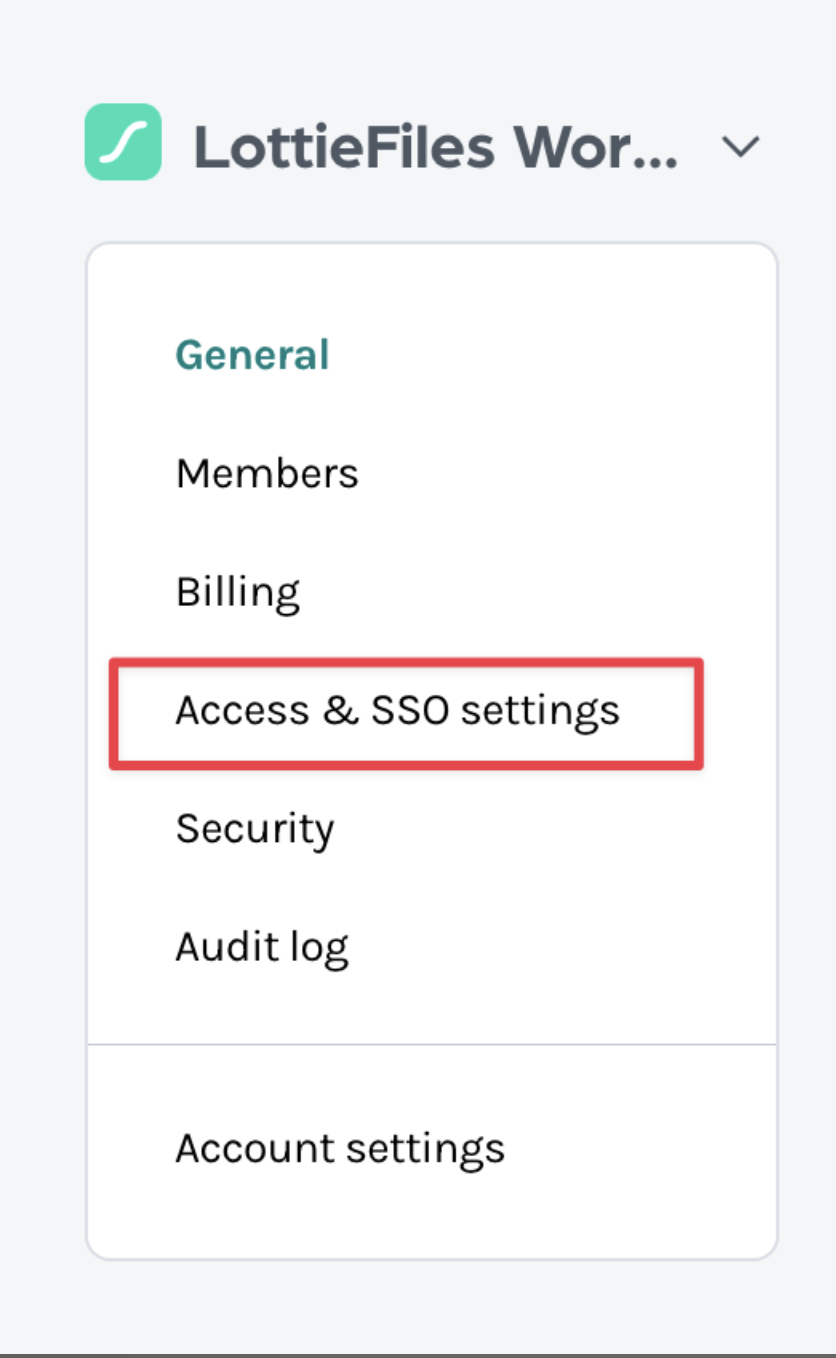

1. Access Workspace Settings: Log in to your LottieFiles account and navigate to Workspace Settings.

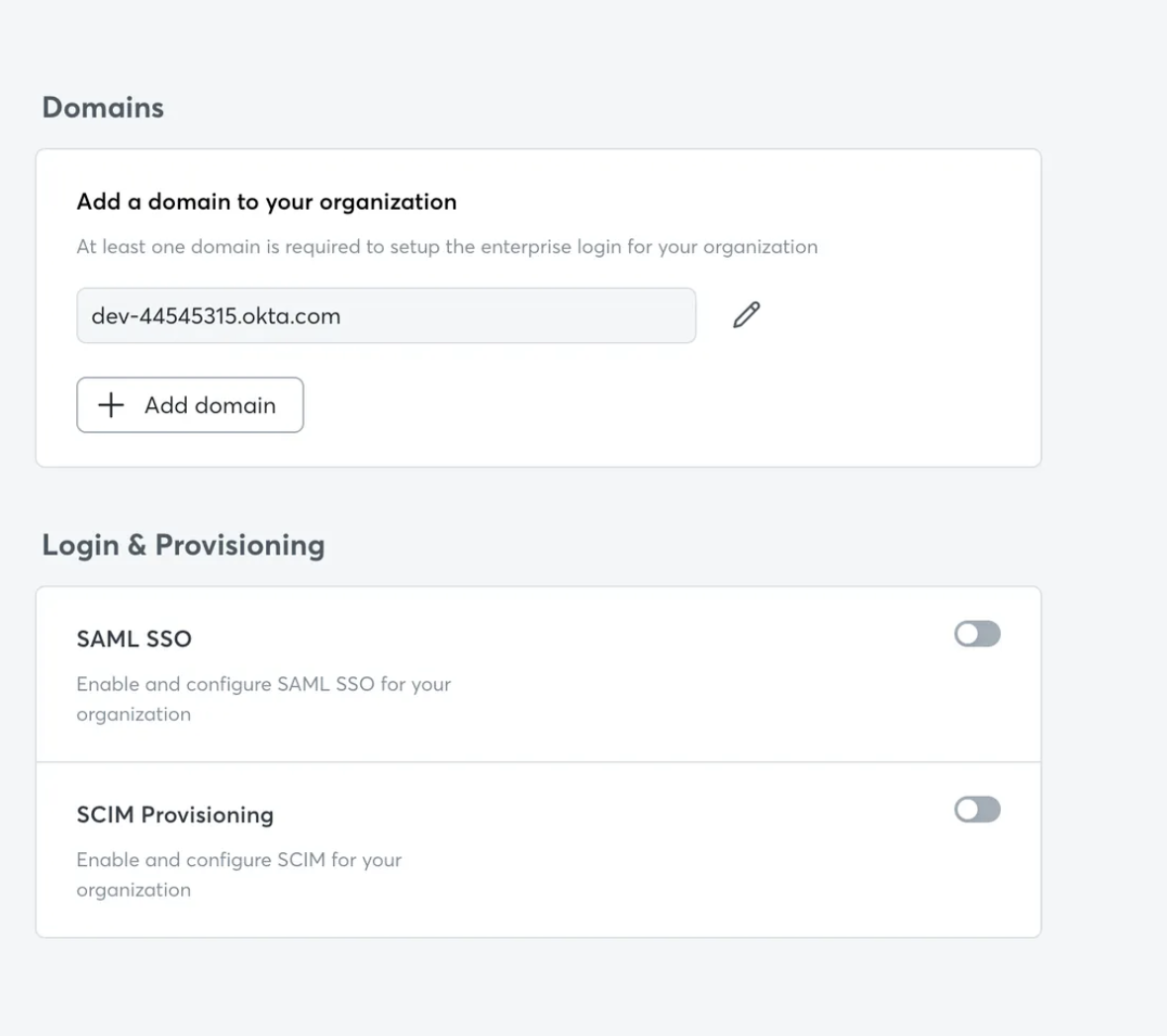

2. Connect Your Domain: Under the Enterprise tab in Workspace settings, you'll find an option to connect your domain for SSO integration. This will allow you to enable SSO with your identity provider, such as Okta or Azure AD.
3. Follow On-Screen Instructions: Once you initiate the domain connection, you will be redirected to our Integration page. Here, detailed instructions tailored to your specific setup will guide you through the remaining process.
4. Complete the Integration: Follow the on-screen instructions carefully to finalize the integration. This process typically involves authenticating and linking your external identity provider with LottieFiles.
5. Verify Integration Status: After completing the steps, your SSO integration status should be active. You can verify this in the Workspace settings.



SCIM Provisioning / Directory Sync

After connecting your domain, you can enable SCIM provisioning to allow for directory synchronization. Simple toggle on the SCIM Provisioning to enables the automated user and group management.

This system synchronizes user accounts and roles between your identity provider (like Okta or Azure AD) and LottieFiles, ensuring up-to-date and secure access management.

Role Mapping

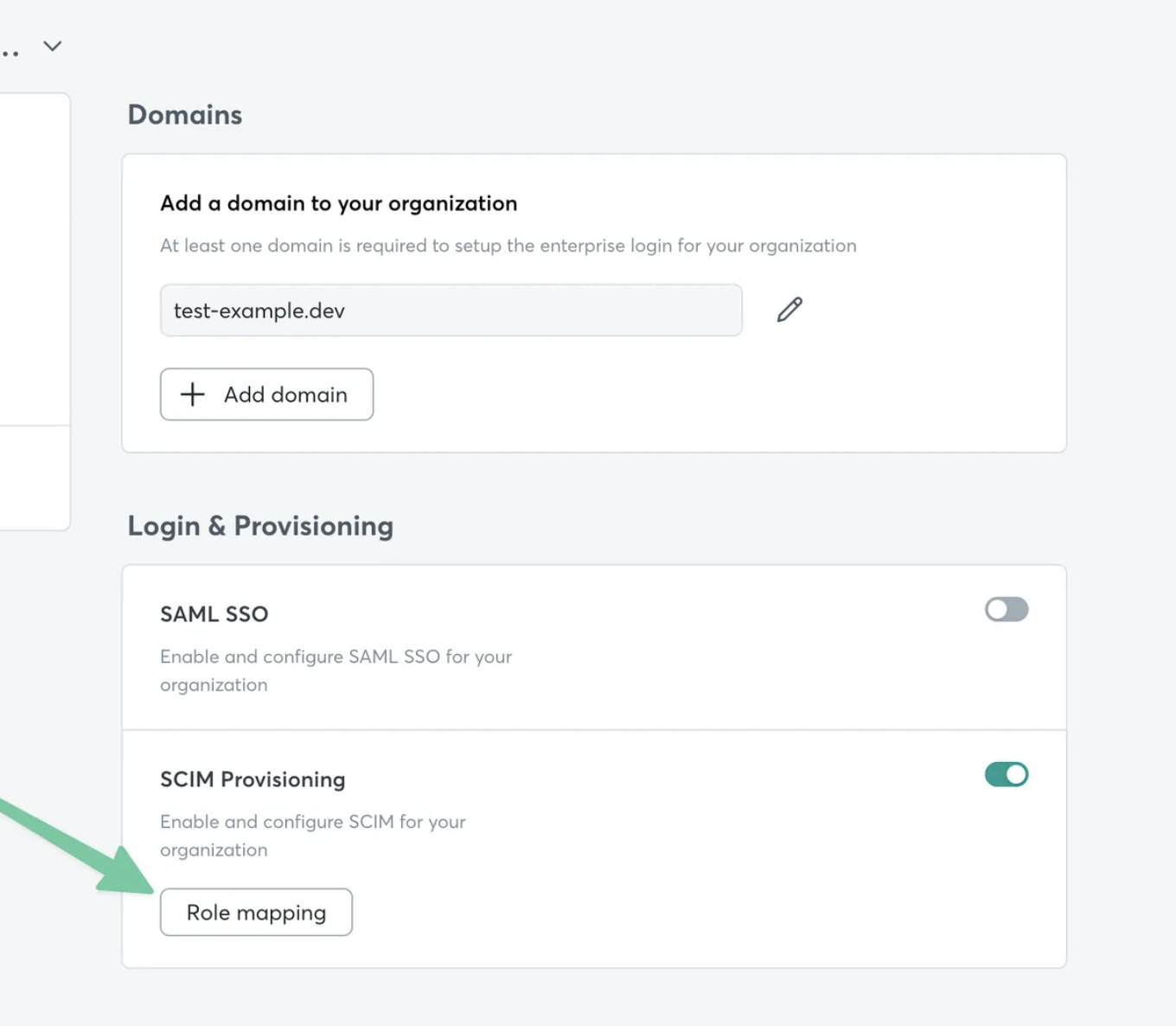

Once SCIM provisioning and Directory Sync is enabled, you must complete the role mapping configuration to complete the setup.

The role mapping page shows the groups from your directory. You can select which groups to Sync to LottieFiles and the role for that particular group.

• For example, you may have a group called Admins in your Directory, and you want to give Admin access
• Some organisations also prefer to create a custom group on their Directory for LottieFiles and sync only that group.

If you are unable to complete the role mapping process because the groups are not shown in the account settings, please check this article: Missing Groups in Role Mapping

Need Help?

If you encounter any issues or have questions during the setup process, please contact our support team at support@lottiefiles.com.

Updated August 01, 2024 08:01
